Model NO.:DX300S-X
Channel:1-16
Frequency:1-8K
Detection Depth:300m
Scan Interval (M):10-60
Operating System:Android6.0.1
Frequency Range Hz:1-8K
Measurement Mode:Mn/Tt
Discrim.”0.1mv±5%
Acquisition Time (S):30-280
Battery Power Consumption:600mA/H
Main Engine Weight:1.6kg
Display:7-Inch IPS Wide-Angle 178° Visual Touch Screen
Connections:Serial Port, WiFi, Bluetooth 4.0, USB (Optional 4G
Number of Channels:1
Transport Package:57*47*20cm
Specification:12KG
Product Description
The main products of 300S- X groundwater detection instrument are introduced.
300S- X groundwater exploration instrument belongs to the category of MT exploration of electrical exploration, which completely solves the shortcomings of inconsistent field source intensity and changing at any time in natural electric field source. It is simple and portable, has stable field source measurement, and has a very high degree of intelligence in data processing. It has achieved remarkable results in practical exploration and use for decades. ADMT series single-channel MT electromagnetic instrument is a basic MT electromagnetic instrument for time-sharing measurement of MT electric field and MT electromagnetic field. The MT electromagnetic method and frequency sounding method are simplified for time-sharing

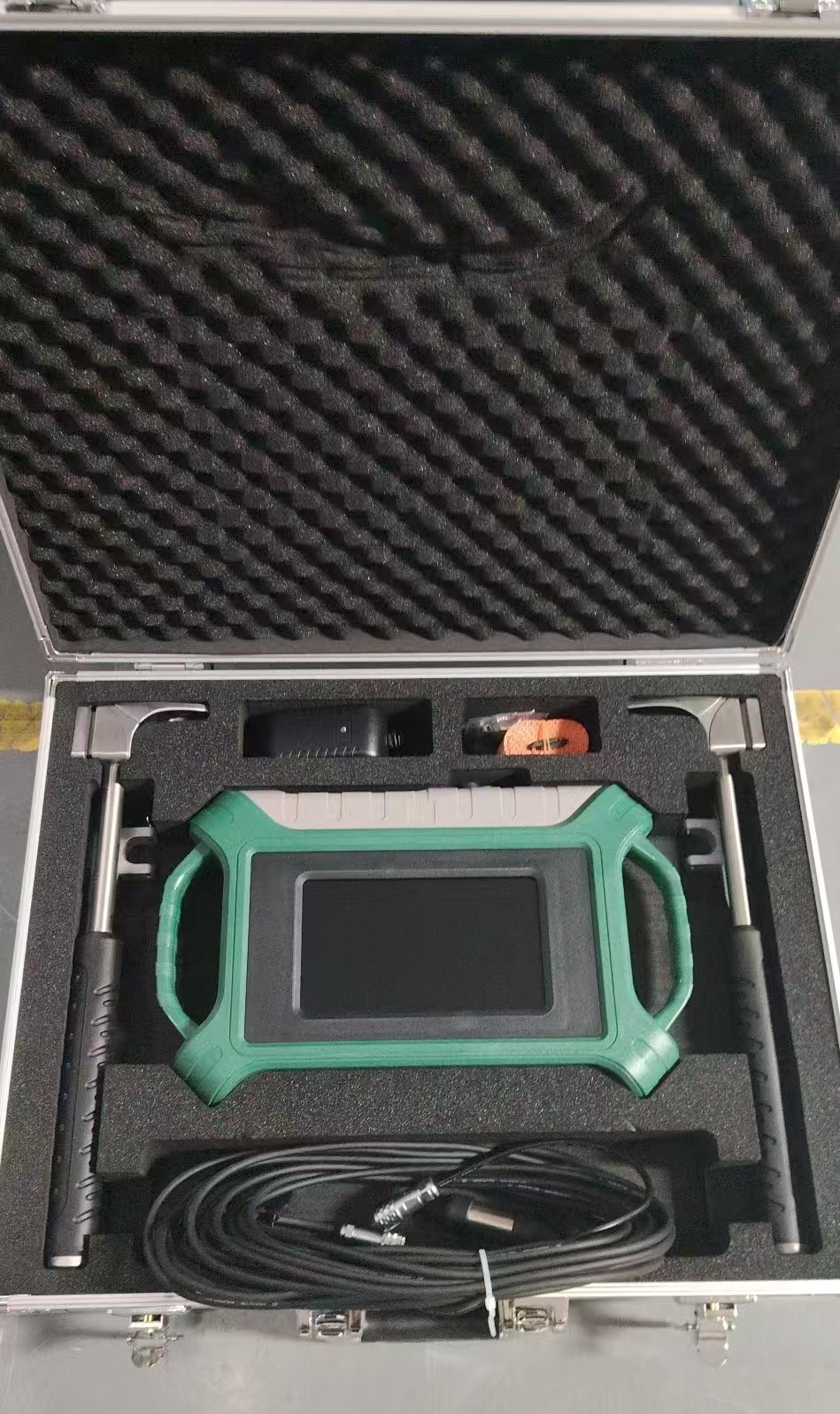

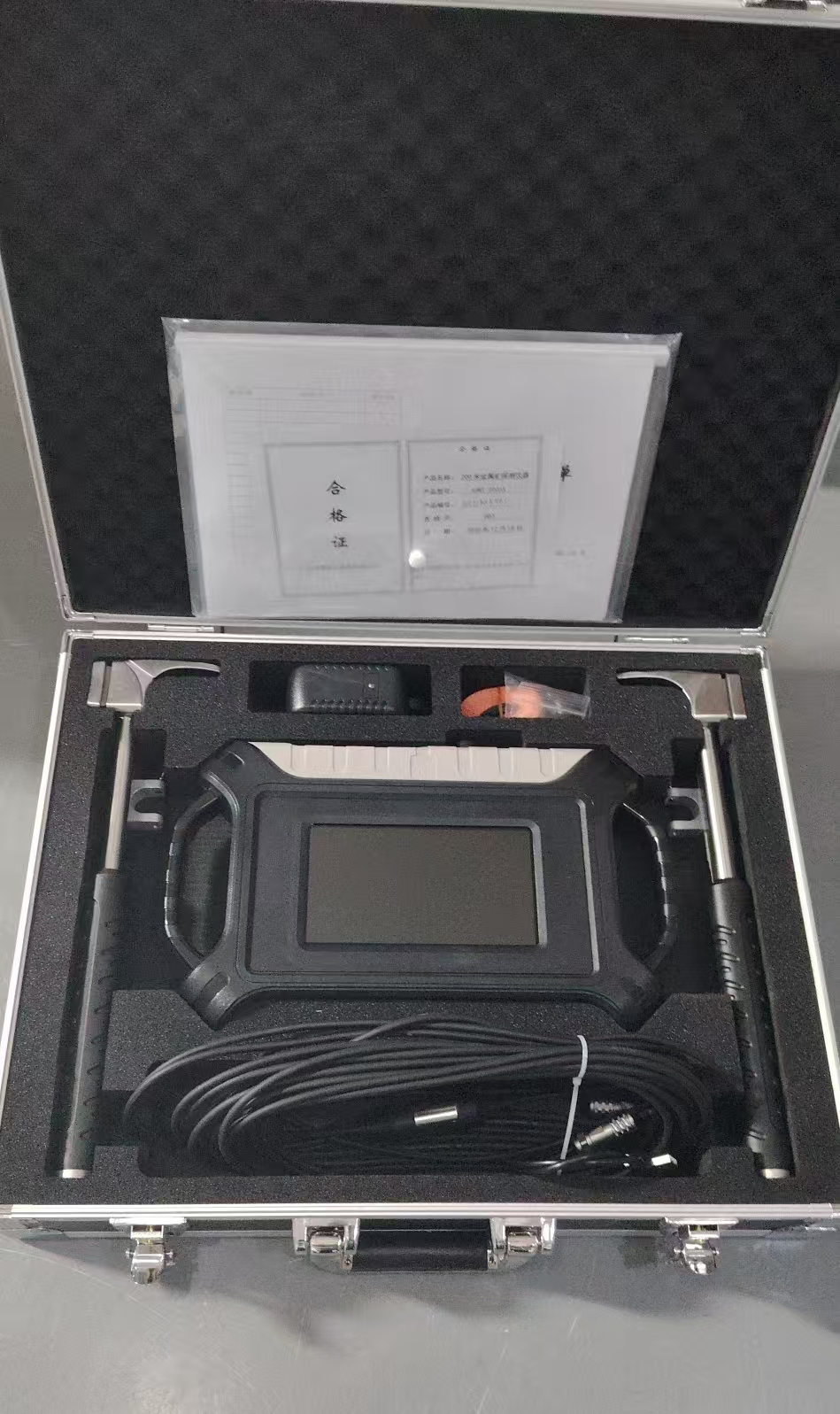

measurement. The standard 7-inch IPS wide-angle touch screen can be used for real-time imaging and data sharing among instruments, mobile phones and PC.The instrument is easy to carry, high measurement accuracy, quick to use, intelligent and simple. Standard detachable polymer battery, 20m MN line, MN electrode and TT electromagnetic probe measurement mode are optional. Can be equipped with wireless probe or golden hoop stick for MN or TT measurement mode, the field operation is very convenient, highly recognized by the majority of customers.It is easy to operate and can be used to analyze and judge the location and depth of groundwater, which is of great help to drilling for water. The detection depth is 100, 200, 200 , 300m,You can quickly draw 2D, 3D and curvilinear effect drawings on the spot, and quickly exchange data and pictures with mobile phones, tablets, PC and the cloud.
The main features of 300S- X groundwater detection instrument are as follows:

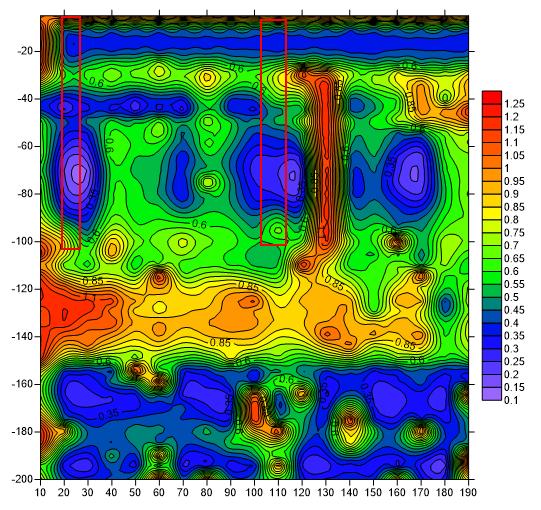

Automatic imaging: 7-inch Android touch screen into 2D, 3D and curve images in real time.
Accurate and stable: iterative upgrade for more than 40 years, high measurement accuracy and stable performance.
Three-screen interworking: instrument screen, mobile phone screen and computer screen.
Intelligent and flexible: MN electrode and TT probe measurement can be switched, can be equipped with wireless probe or water finding golden hoop rod.
The product has obtained a number of invention patents (patent number: 201320054153.5, 201120214308.8, 201120567915.2, 201320303919.9). In particular, the field source correction function of the invention patent "Geophysical method and measuring device for Field Source Correction of Earth electromagnetic Field" 201310205318.9 solves the shortcomings of inconsistency and change of field source intensity of natural electric field.
The main functions of 300S- X groundwater detection instrument are as follows:
It reflects the change of underground resistivity by measuring the strength of natural electric field, so as to analyze and judge the location, depth, trend and other relevant information of groundwater, through detailed investigation, general survey and exploration of groundwater, to solve the needs of human and animal drinking water, industrial water and agricultural irrigation, plays a great role in the success of drilling wells for water, and has been well received by the majority of customers!
Three measurement methods are optional

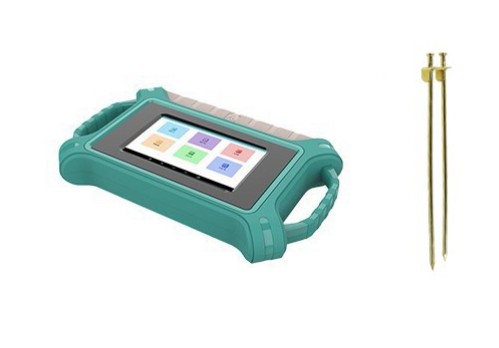

Standard MN electrode measurement: classic 20-meter wire connection, insertion can be measured, two-person measurement is appropriate.
Optional electromagnetic probe measurement: wired connection TT/MN measurement mode, suitable for cement, rock, moving soil and other ground, single person to complete the survey.
Optional water-finding golden hoop bar: full wireless connection, TT, large and small pole distance MN measurement mode, suitable for cement, rock, soil and other ground, single person to complete the survey.
The main uses of ADMT-300S- X groundwater detection instrument are as follows:
Judge the location, depth, water output and other related information of groundwater to guide well drilling and other operations, and improve the success rate of well drilling. Detailed survey and general survey of regional hydrogeology.
Main technical parameters of
300S- X groundwater detection instrument
Measuring range: ±5V.
Depth: 100m/200m/300m.
Measurement channel: single channel measurement.
Frequency selection filtering: preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times stack optional.
Measurement mode: MN electrode, TT electromagnetic probe (optional).
Response frequency: 5-80KHZ.
Resolution: 0.1 microvolts ±5%.
Repeated measurement error: 0.1% ±1 word.
AD conversion: 24-bit 1Msps (CPU:ARM Cortex-A7).
Main functions: optional depth, real-time 2D/3D drawing.
Sampling time: 40-280 seconds.
Input impedance: > 100 M Ω.
Display screen: 7-inch IPS wide-angle 178-degree visual touch screen.
System: Andriod 6.0.1 host, compatible with mobile phones and tablets.
Interface communication: Bluetooth 4.0, serial port, Wifi, miniUSB (optional 4G communication), GPS.
Power supply: DC12V 6000mAH lithium battery (removable).
Working environment:-40 ºC ~ + 70 ºC 90%RH.
Mainframe weight: 2.3KG
