Model NO.:DK68
Model Name:Multifunction Detector Dk68
Materia:ABS
Battery:350mAh
Size:128*60*28mm
Weight:400g
Carton Size:600*350*210mm
Total Weight:15.5kg/40PCS
Specification:140*62*30MM
Detection range:2.4G: 10 square meters(standard 10mw) 1.2G:15 square meters(standard 10mw) mobile phone band 2G. 3G. 4G signal: 15 square meters
Place of Origin | Guangdong, China |
Model name | Multifunction Detector DK68 |
Materia | ABS |
Battery | 350mAh |
Working Temp | -10 - 60 degrees Celsius |
Storage Temp | -20 - 85 degrees Celsius |
Operation Humidity | 15-85%RH |
Frequency Range | 1MHz~8000MHz |
Detection dynamic range | >73DB |
Detection sensitivity | <=0.03mW |
Detection range | 2.4G: 10 square meters(standard 10mw) 1.2G:15 square meters(standard 10mw) mobile phone band 2G. 3G. 4G signal: 15 square meters |
Battery | 3.7V DC 1200mA |
Continuous working time | About 6 hours for lens detector
and about 10 hours for RF detector |
Current Consumption | 80-150mA |
Net weight | 400g |
Net volume | 128*60*28mm |

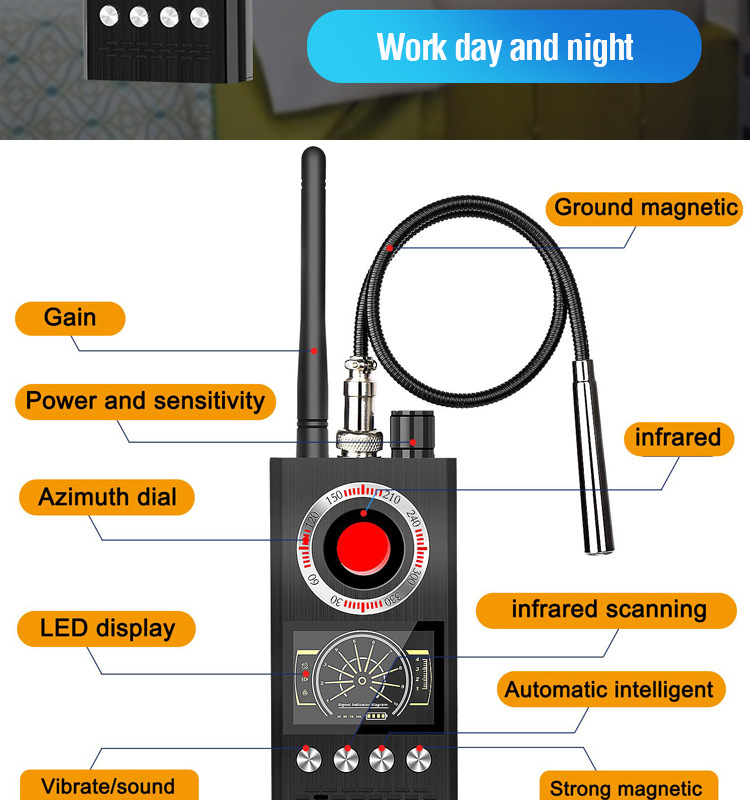

Instruction mode | 10-level digital tube, buzzer, vibrator indication |
Application scenario | 1. Laser Detection 2. Vibration (Mute) Detection 3.Beep Detection 4.Led Display Detection |
Remark | Parameter measurement error is inevitable, and please refer to the actual product |
working current | 80-150m |
