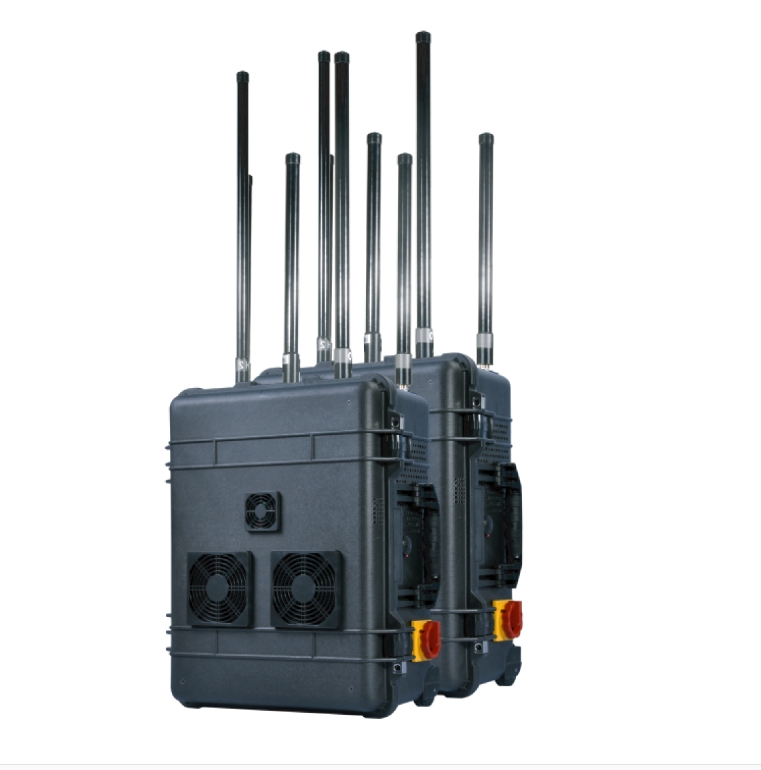

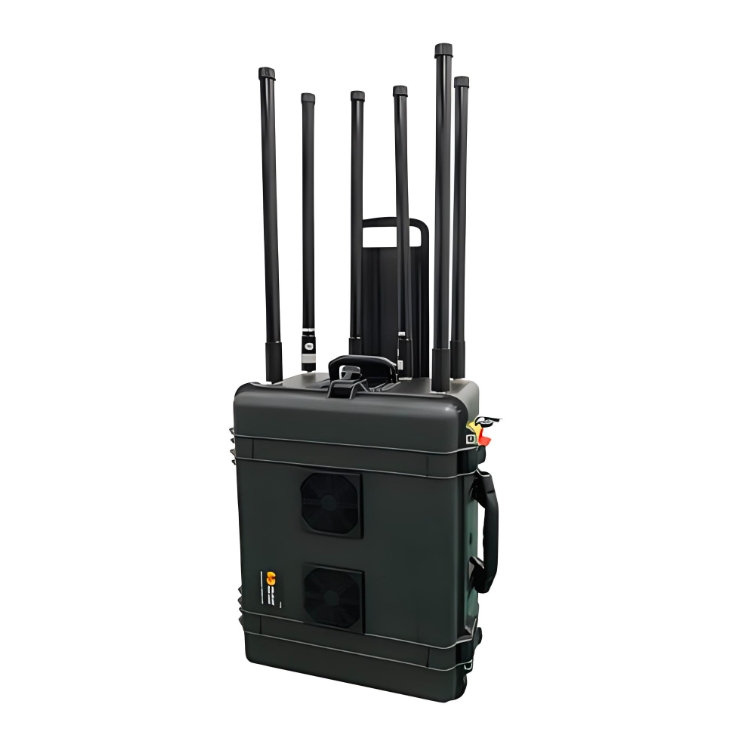

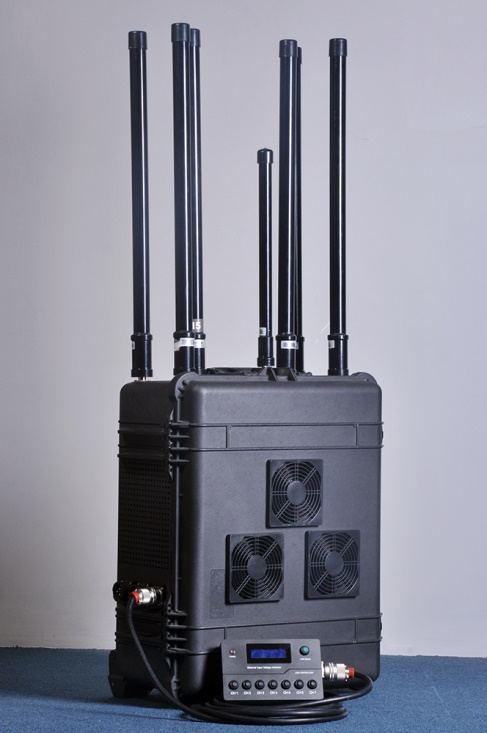

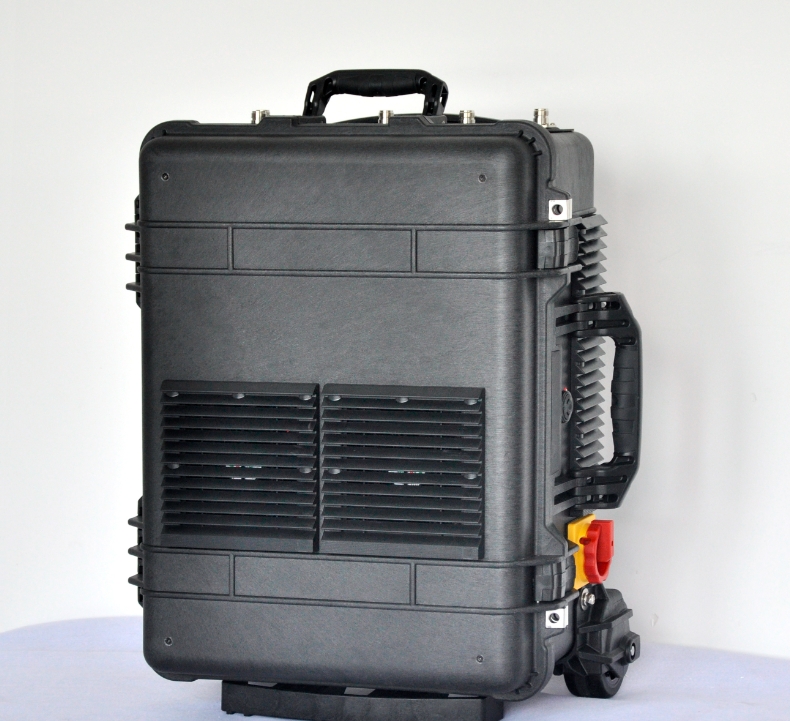

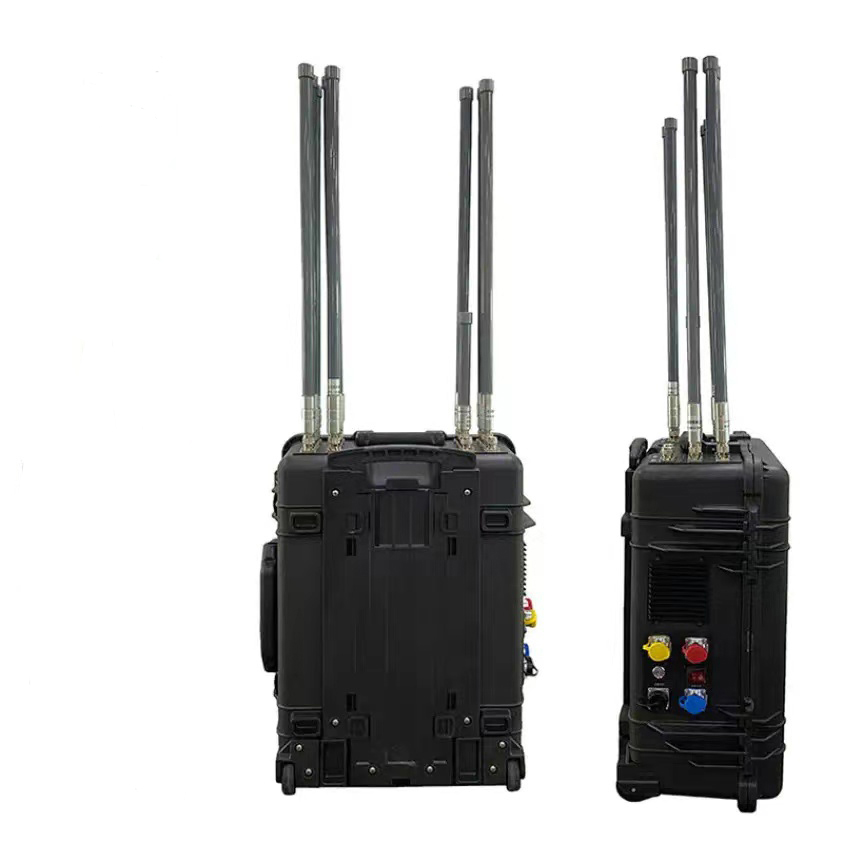

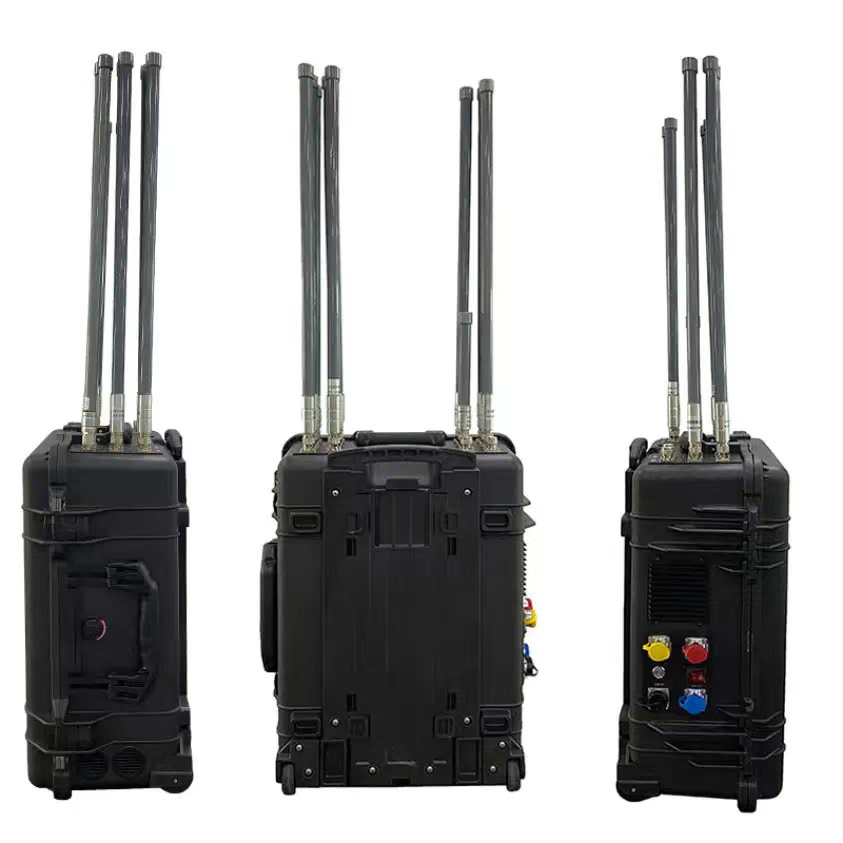

Model NO.：DXT01
Quantities of Simultaneous Jamming：30
Cover Distance：Less Than 3km
Transport Package：Aviation Box Packaging
Specification：620*500*350mm
Performance
1 | Working principle | Radio jamming suppression |
2 | Object of action | UAV map transmission, flight control links,navigation signals |
3 | Operating frequency band (optional) | Working frequency | Average output power |
4 | 410-470MHz | 47dBm |
| 650-820MHZ | 47dBm |
5 | 820-960MHz | 47dBm |
| 960-1100MHZ | 47dBm |
6 | 1160-1300MHz | 47dBm |
7 | 1300-1400MHz | 47dBm |
8 | 1550-1630MHz | 47dBm |
9 | 2380-2500MHz | 47dBm |
10 | 5150-5300MHz | 47dBm |
11 | 5720-5880MHz | 47dBm |
